7.2KW System| LiFePO4 Battery | Solar Inverter

Model7.2KW System
Solar inverterOptional
Solar Panel TypeMono
OEM/ODMWarmly Welcomed
Battery TypeLiFePO4
ApplicationResidential/Commercial
Output Frequency60Hz/50Hz
Output Voltage [V]110V-380V


Introduction

Introduction

On Grid System/Off Grid System/Hybrid System


Professional engineer online design


Full range of product customization service

Specification

System Configuration
3.5KW system
5.5KW system
8KW system
10KW system
MAX PV INPUT
HIP 4000 /HIS 5000
HIP 6000 /HIS 6000
8200
10200
PV Module
1.6KW-
3.3KW/ 4.95KW
3.3KW- 5.5KW
5.5KW-7.7KW
8.8KW-9 .9KW
550W No. PV modules (pcs)
3--6/9
6--10
10--14
16--18
Effective Roof Area Approx.
8.5--17/ 25 M2
17--28 M2
28--39M2
45--50 M2
Inverter
3.5KW*1set
5.SKW*1 set
8KW*1set
1OKW*1 set
Battery
5-1 OKWH/1 SKWH
10-20KWH
20KWH--30KWH
30KWH--36KWH
Cable set
1 set
1set
1 set
1set
Mounting Structure set
1set
1set
1 set
1set
Cloud &APP
1set
1set
1 set
1set
iBox
1set
1set
1 set
1set
Power Generation Carbon Dioxide Emission Reduction
5-10/1SkWh/Day
1825-
3650/5475kWh/Year
10-20kWh/Day 3650-
7300kWh/Year
20-30kWh/Day 7300-
10950kWh/Year
30-36kWh/Day 10950-
13140 kWh/Year

Reduce carbon dioxide 3.6/ 5.4t on per year
Reduce carbon dioxide 7.3ton per year
Reduce carbon dioxide 10.9ton per year
Reduce carbon dioxide 13.4ton per year



7.2KW System Detial

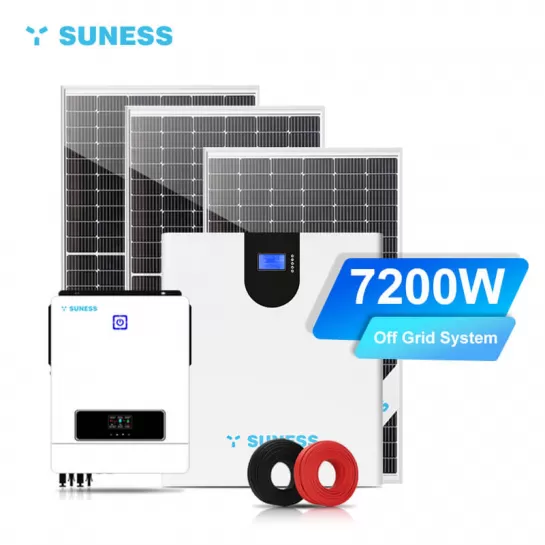

solar panel kit with battery and inverter

Where to install surge protectors in a solar power system?


Surge protectors should be installed at specific locations in the solar power system to provide effective protection. Here are a few key areas where surge protectors should be installed: AC Power Inverter: An AC power inverter is responsible for converting the direct current (DC) generated by the solar panels into alternating current (AC) power that appliances can use.

Installing a surge protector on the output of the inverter will prevent any surges or voltage spikes that may occur during the conversion process. DC Combiner Box: The DC combiner box is where multiple strings of solar panels are connected together. This is an ideal location to install a surge protector because it can help prevent surges from reaching the inverter and other components of the system. Photovoltaic Array Junction Box: The photovoltaic array junction box is located near the solar panels and is used to connect the individual panels in the solar array. Installing a surge protector in this location will protect against any surge or lightning strike that may occur.

Point of entry: It is also recommended to install a surge protector at the point of entry to the mains. This will protect the entire solar power system from grid-related surges or transients. When installing a surge protector, be sure to follow the Suness guidelines and make sure the surge protector is rated for the voltage level of your system. It is also recommended to consult a professional electrician or solar installer for proper installation and to ensure compliance with local electrical codes and regulations

Products Detail

Half-cut Solar Panel


Mono Half-cut single/Double Glass Module
Saving logistics cost Saving cable cost
Saving bracket cost Saving labor cost
10-year warranty for material and technology
25-year linear power output warranty

Solar inverter


Pure sine wave solar inverter(on/off grid)
Inverter running without battery
High PV input voltage range(90~500VDC)
Built-in MPPT solar charge
Smart battery charge design to optimize battery life
Dual output
Built-in lithium battery automatic activation
LCD Touch buttom

Why choose us?

Installation Location Requirements

Long warranty inverter battery

10 years + R&D team

Multiple charge and discharge modes available

The most competitive price

Built-in BMS and MPPT solar charge controller

24-hour online consultation

No matching and commissioning required,ready to install

We provide OEM/ODM service

10 years + R&D team

Overseas warehouse stock, timely delivery

The most competitive price

Free after-sales maintenance at global stations

Free after-sales maintenance

UL, CE, UN38.3, MSDS, IEC, ISO certificates

We provide OEM/ODM service

Provide Professional Solar Solutions
