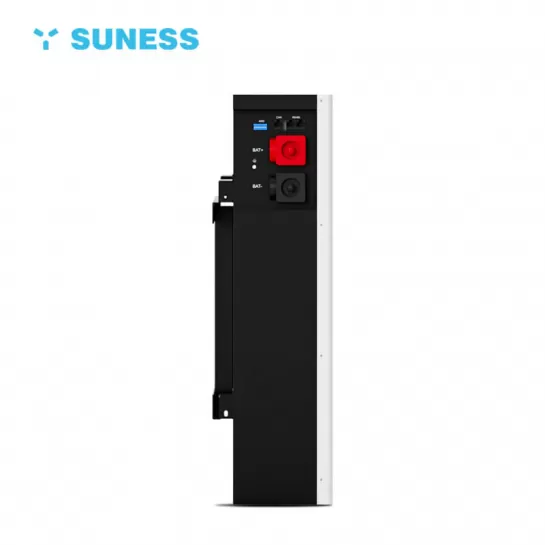

EV-5.12M 24V 200AH | A+ grade | Lithium Battery

ModelEV-5.12M
Total Energy [kWh]5.12
Capacity [Ah]200
Nominal Voltage [V]25.6V
Voltage Range [V]24V-28.8V
MAX.Charge & Discharge
Current[A]
80
Dimension[W×DxH,mm]660*430*185
Net Weight [Kg]44


Introduction

Introduction

25.6V 200Ah Lithium Battery for 10 years Warranty

More than 8000 cycle , 150A peak Charge current

Suness lithium Battery Communicate with Solar Inverters(Goodwe、Felicitysolar/Sofar/Growatt/deye/Solis/SMA/Victron/SORO/Schneider)

Safe LiFePO4 Battery, BMS  Protections

Advanced CAN&RS485 Communication Support

LCD and LED Displays APP/Bluetooth Monitor

Global After-sales Service

Specification

ModelEV-5.12MEV-10.24NEV-15.36N
Total Energy [kWh] 5.1210.2415.36
Capacity [Ah]200200300
Nominal Voltage [V]25.651.251.2
Voltage Range [V]24-28.848-57.648-57.6
MAX. Charge & Discharge Current [A]80100 150
Peak Charge & Discharge Current [A] (for 10 sec.)150 120 200
Product Dimension(MM)660×430×185MM830×610×194MM905×470×250MM
Net Weight [Kg]4586 120
Scalable1~16 in parallel
CommunicationCAN,RS485
Communicated InverterGOODWE/Victron/SOFAR/DEYE/Growatt/MEGAREVO/SRNE
Enclosure Protection RatingIP21
Charging Temp Range [°c]0~55
Discharging Temp Range  [℃] -10 ~55
Cycle Life≥8,000 Cycle@ 80% DOD / 25℃ / 0.5C, 60%EOL
Warranty10 years
CertificationIEC62619,UN38.3,CE


EV-5.12M Detial

EV Series is a high-cycle and large-capacity LiFePO4 battery with higher safety, longer service life and optimized user experience

EV-5.12M 24V 200AH | A  grade | Lithium Battery

EV-5.12M 24V 200AH | A  grade | Lithium Battery

Strictly control the quality of raw materials and product quality

Built-in BMS ensures uniform cell attenuation and ensures that the cell temperature difference does not exceed 5℃

EV-5.12M 24V 200AH | A  grade | Lithium Battery

EV-5.12M 24V 200AH | A  grade | Lithium Battery

Suness Service Detail

Suness lithium batteries have cooperative distributors in 80+ countries around the world.


EV-5.12M 24V 200AH | A  grade | Lithium Battery

EV-5.12M 24V 200AH | A  grade | Lithium Battery

EV-5.12M 24V 200AH | A  grade | Lithium Battery

EV-5.12M 24V 200AH | A  grade | Lithium Battery


Provide customized brands, flexible production planning, and ensure on-time delivery

Leading automated process, comprehensive machined aging test
