Home > Products > old products > ES-7.68L

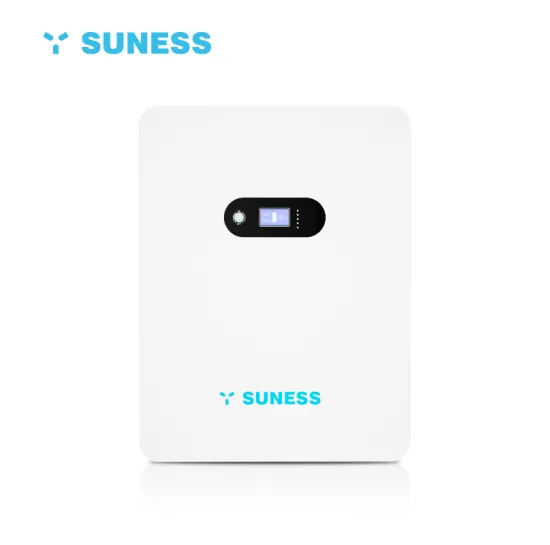

ES-7.68L

ModelES-7.68L
Total Energy [kWh]7.68
Capacity [Ah]150
Nominal Voltage [V]51.2
Voltage Range [M]48V-51.2
MAX.Charge & Discharge
Current[A]
60
Dimension[W×DxH,mm]430×205×665
Net Weight [Kg]61


Introduction

48V 150ah LiFePO4 Battery
95% DOD with More Usable Capacity
>6000 cycles Reliable Performance
Compatible with most of available solar inverters
Support CAN&RS485 Communication
Wall mounted lithium battery is mainly for home energy stoarge solutions

Specification


ModelES-5.12LES-7.68LES-10.24LES-15.36LES-17.92L
Total Energy [kWh] 5.127.6810.2415.3617.92
Capacity [Ah]100150200300350
Nominal Voltage [V]51.251.251.251.251.2
Voltage Range [V]48-57.648-57.648-57.648-57.648-57.6
MAX. Charge & Discharge Current [A]50 60 80 120 150
Peak Charge & Discharge Current [A] (for 10 sec.)80 100 120 150 200
Dimension [W x D x H, mm]430×255×575430×205×665610×160×800577*680*280721*680*280
 Net Weight [Kg]58 61 72 110 135
Scalable1~16 in parallel
CommunicationCAN,RS485
Communicated InverterGOODWE / Victron / SOFAR / Deye / Growatt / Solis / SMA / SRNE
Enclosure Protection RatingIP21
Working Temperature Range [℃] -10 ~ 50
Cycle Life>6,000 Cycle@ 80% DOD / 25℃ / 0.5C, 60%EOL
Warranty5 years
CertificationIEC62619,UN38.3,CE
