| Model | iCab-HVL 112 |
| Total Energy [kWh] | 112.56kWh |
| Capacity [Ah] | 16.08KWH |
| PACK Quantity | 7PCS |
| Voltage Range [M] | 324.8~403.2Vdc |
| MAX.Charge & Discharge Current[A] |
200A |
| Dimension[W*D*H,mm] | 850*1150*2300 |
| Compatible Inverter | Deye/Solis/Sosen/Solinteg/Atess/Magarevo |
| Item | Specification |
| Model | iCab-HVL 112 |
| Battery Technical Specification | |
| Battery Type | LiFePO₄ |
| Module Voltage / Capacity | 51.2V / 314Ah |
| Module Energy | 16.08 kWh |
| PACK Quantity | 7 PCS |
| Weight of High Voltage Control Box | 25 kg |
| Single Module Weight | 114 kg |
| System Specification | |
| System Energy Range | 112.56 kWh |
| Voltage Range | 324.8–403.2 Vdc |
| Communication | CAN / RS485 |
| Recommended Charge & Discharge Current | 157 A |
| Max. Charge / Discharge Current | 200 A |
| Recommended Depth of Discharge | ≤95% |
| Charging Temperature Range | 0~55°C |
| Discharging Temperature Range | -10~55°C |
| Humidity | 0–95% RH (Non-condensing) |
| Protection Level | IP55 |
| Installation Method | Floor-Mounted |
| Display | Touch Screen |
| Cooling Method | Air Cooling |
| Fire Protection | Aerosol / Perfluorohexanone |
| Altitude | ≤3000 m (Derating above 2000 m) |
| Cycle Life | ≥8000 Cycles |
| Dimensions (W × D × H) | 850 × 1150 × 2300 mm |
| Certification & Safety Standard | UN38.3 |
| Compatible Inverter | Deye / Solis / Sosen / Solinteg / Atess / Magarevo |

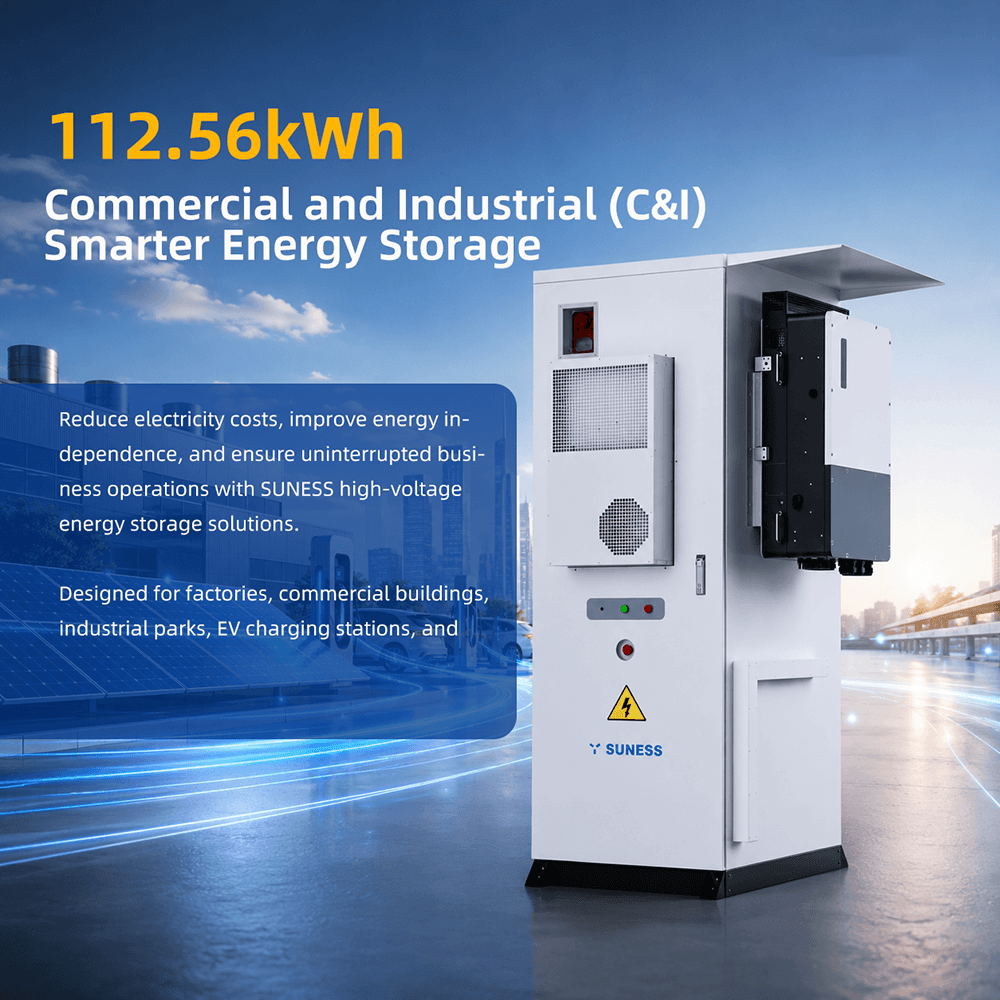

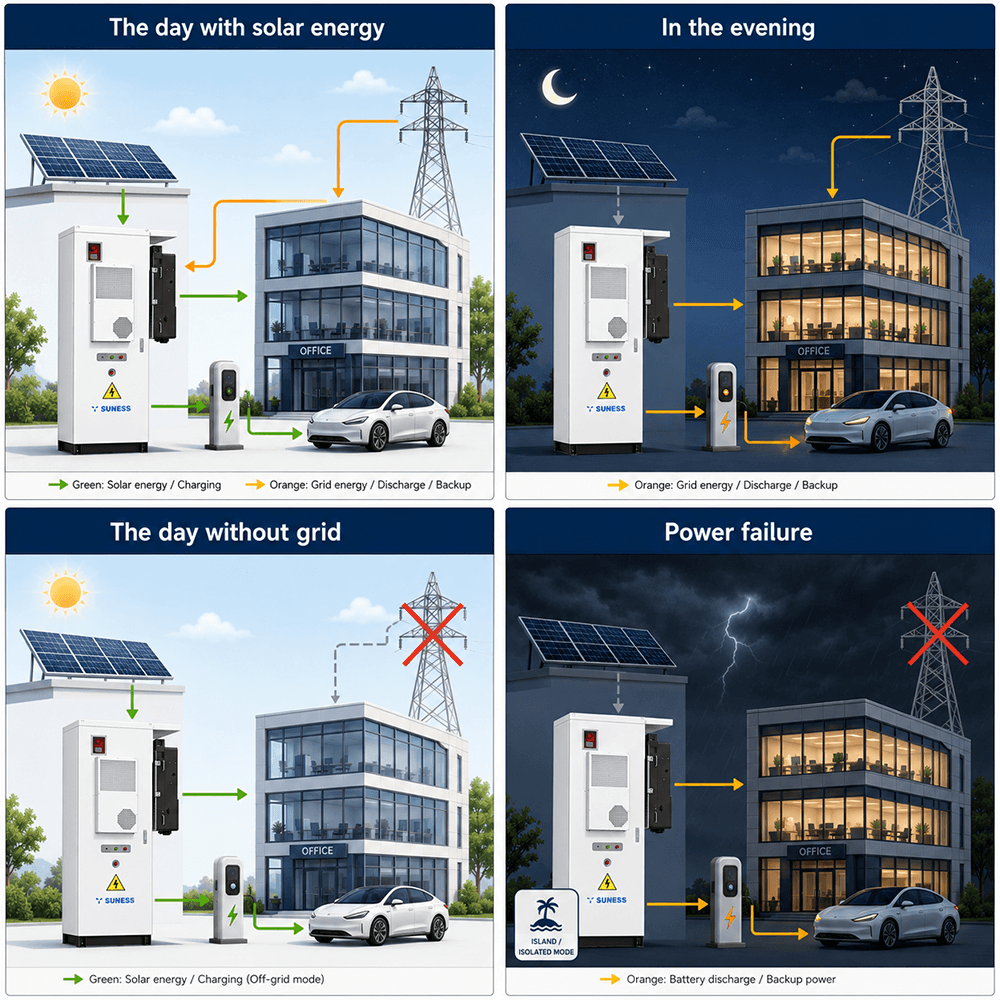

The SUNESS iCab-HVL Series is a 112.56kWh commercial battery energy storage cabinet using LiFePO₄ battery technology. Designed for commercial and industrial energy storage, it features 8,000+ cycles, IP55 protection, smart BMS, touchscreen monitoring, and compatibility with major hybrid inverter brands including Deye, Solis, Solinteg, Atess, and Magarevo, making it suitable for solar energy storage, peak shaving, backup power, and microgrid applications.
