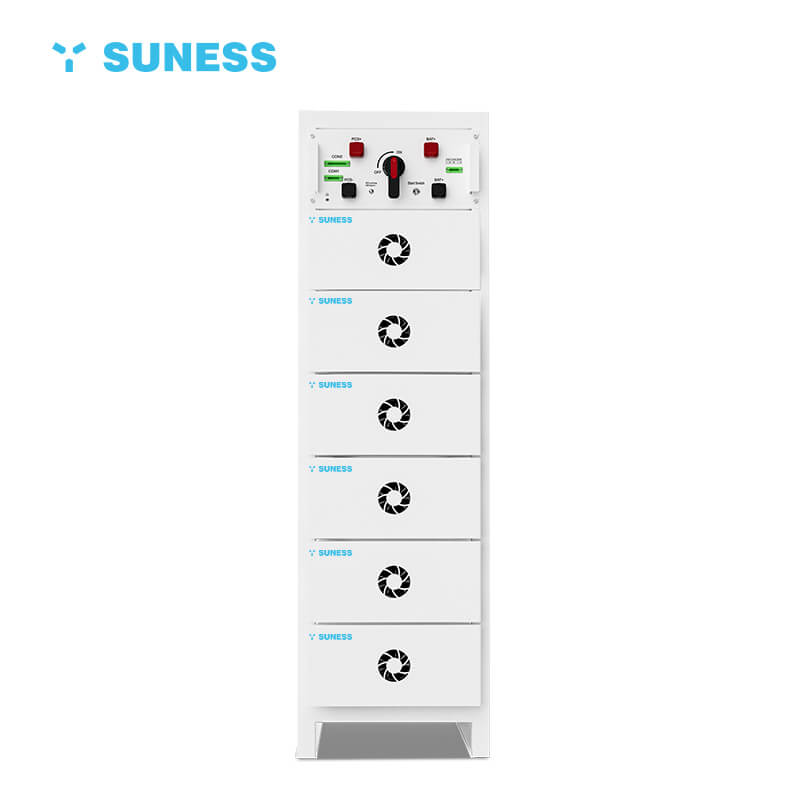

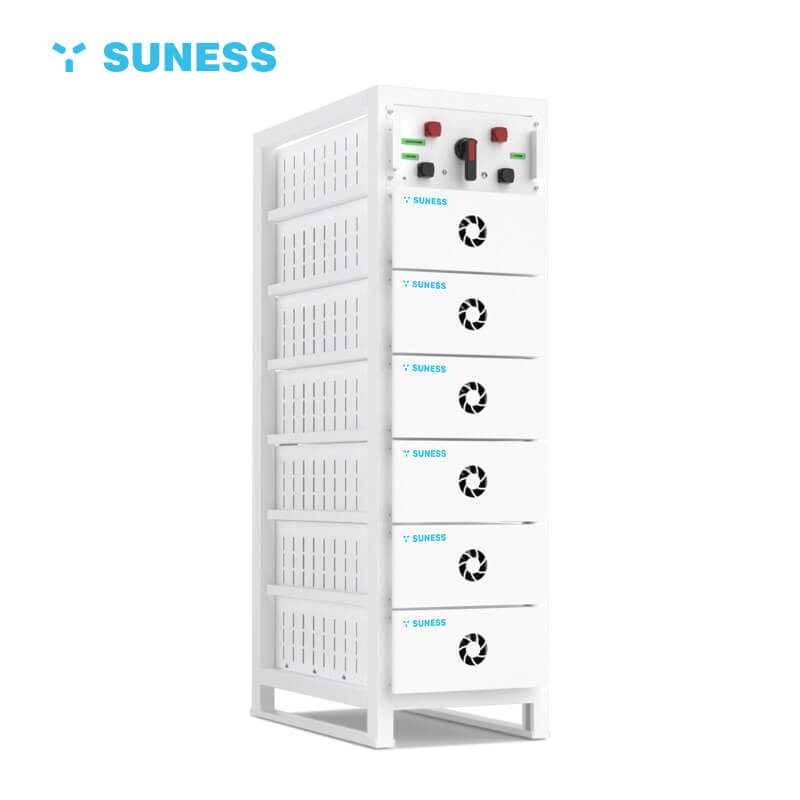

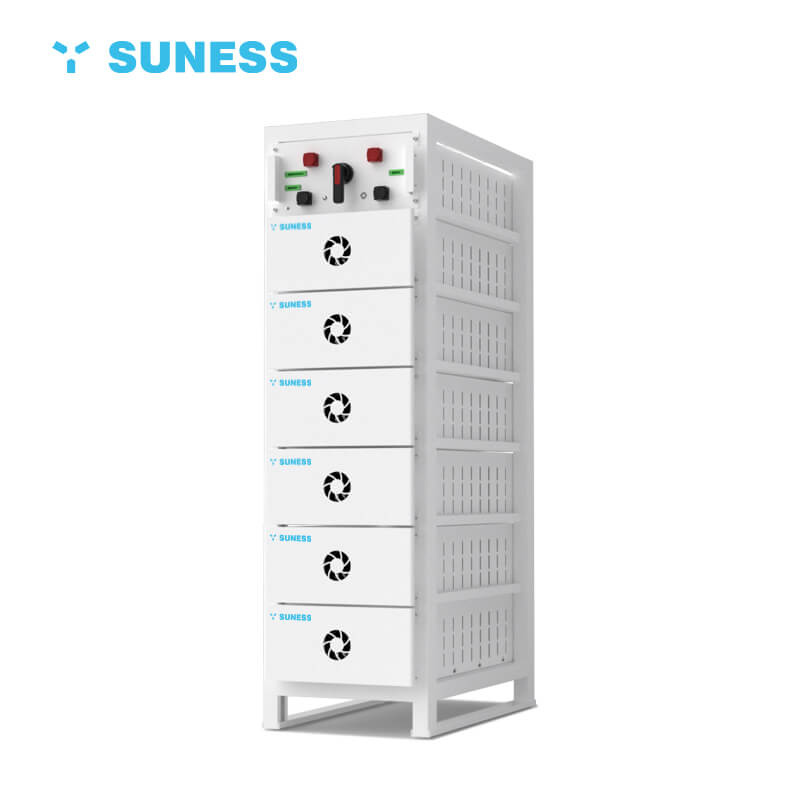

iRack-HVM 107KWH A+ grade | 384V 280AH | Lithium Battery

ModeliRack-HVM 107
Total Energy [kWh]107.52KWH
Capacity [Ah]280
Nominal Voltage [V]384V
Voltage Range [M]336V-432V
MAX.Charge & Discharge
Current[A]
140
Dimension[W*D*H,mm]550*1000*1865
Net Weight [Kg]1055


Introduction

Introduction

BMS & BLUETOOTH

Highly compatible BMS with Smart Screen for viewing battery data on PC.with Smart Screen for viewing

LONG SERVICE LIFE

Metal shell, can be stacked to use not easy to damage, more than 10 years

Can be customized to fit 12pcs batteries

WIDE RANGE OF APPLICATION SCENARIOS

Home energy storage systems, industrialand commercial energy storage systems

Specification

 ModelsiRack-HVM 107iRack-HVM 215
 Cell TypeLFPLFP
 Total Energy107.52kWh215.04kWh
 Number of Modules612
 Configuration1P120S1P240S
 Nominal Capacity280Ah280Ah
 Nominal Voltage384V768V
 Operating Voltage Range336Vdc-432Vdc672Vdc-864Vdc
 Battery Max Continuous Charge/Discharge Power53.76kW107.52kW
 Dimension [W x D x H]550*1000*18651080*1000*1865
 Net Weight1055kg1950kg
 Max. Charge Current140A
 Max. Discharge Current140A
 CommunicationCAN.RS485
 Enclosure Protection RatingIP20
 Altitude≤2000m
 InstallationIndoor
 Charging Temp Range0℃-55℃
 Discharging Temp Range-10℃-55℃
 Working Humidity5%-95%
 Cycle Life≥8.000 Cycle@ 80% DOD/25℃/0.5C,60%EOL
 Communicated InverterDeye / MEGAREVO / GOODWE / ATESS / SINEXCEL
 CertificationIEC62619,UL1973 ,UN38.3,CE


iRack-HVM 107 Detial

Discover exceptional power and reliability with the HVM 107KWh high-voltage energy storage solution. Tailored for demanding environments, it operates flawlessly across a versatile 336V-432V output range. Equipped with advanced temperature control and WiFi connectivity, it guarantees peak performance and convenience. Industrial and commercial energy storage batteries are crucial for storing substantial electrical energy for future use, vital for grid load balancing, backup power, and meeting peak energy demands.

ess battery

HV lifepo4 Battery

Inverter Battery

energy storage battery with BMS

OEM lithium battery

OEM ODM lifepo4 battery

energy storage system work

Suness Service Detail

SUNESS, with strong manufacturing capabilities and extensive participation in international solar energy expositions, we focus on the research and production of cutting-edge photovoltaic energy storage solutions. Our advanced manufacturing facilities ensure the production of efficient and reliable energy storage systems. With a global sales and service network, we provide customers with excellent support and service experience.

At many international solar energy expositions, we have continuously demonstrated technological innovation and product advantages, establishing our industry-leading position. Our products not only have excellent performance, but also have multiple international certifications such as IEC and UL to ensure safety and reliability.

energ storage system case

energy storage battery factory

Battery after-sale

YOUESS EXhibition

Our factories adhere to strict quality inspection processes and cooperate with well-known raw material suppliers to ensure the production of A+ grade battery cells. The commitment to quality consolidates our ability to provide excellent product reliability and efficiency.

We are committed to providing comprehensive energy solutions to support our customers' success in energy transformation and sustainable development. No matter where you are, we can provide customized solutions that meet your specific needs, backed by excellent product quality and professional services.

Choose us as your trusted energy partner and let us pave the way for a cleaner energy future together.
