60kW Three-Phase High Voltage Hybrid Inverter | EH-60KL3 Series

EH-60KL3

EH-60KL3 Series

Advanced SiC MOSFET technology boosts efficiency and reduces weight. Sub‑10ms switching ensures uninterrupted power delivery. MPPT voltage range: 150V–850V (max. 1000V DC). Dual 100A battery input channels (charge/discharge) ensure broad compatibility with major battery brands; combine both in one cabinet for up to 200A. Supports black start, off‑grid, and economy modes for flexible power management. AC coupling enables easy retrofitting of existing solar systems.

TECHNICAL SPECIFICATION
Model	EH-60KL3 Series
INVERTER INPUT/OUTPUT (GRID)
Rated Power	60 kW
Rated Voltage	380 / 400 V a.c., 3W+N+PE
Rated Frequency	50 Hz / 60 Hz
Power Factor Range	0.8 leading~ 0.8 lagging
Max. Continuous Current (Input / Output)	182.4 / 91.2 A a. c.
Max. Output Overcurrent Protection	136.7 / 129.9 A a. c.
BATTERY
Battery Type	Lithium / Lead-acid
Battery Voltage Range	150 ~ 800 V d.c.
Rated Battery Voltage	300 V d. c.
Max. Charge Current	2*100 A d. c.
Max. Discharge Current	2*100 A d. c
Reverse Connect Protection	Yes
PV INPUT
No. of MPPT Tracker/Strings	4 / 2+2+2+2
Max. PV Input Power	100 kW
Max. DC Voltage	1000 V d. c.
MPPT Voltage Range	150 ~ 850 V d. c.
Start-up Voltage	200 V d. c.
Max. Input Current	8*20 A d. c.
Isc PV (Absolute Maximum)	8*30 A d. c.
AC OUTPUT (EPS)
EPS Rated Output Voltage	380 / 400 V a.c., 3W+N+PE
EPS Rated Output Frequency	50 Hz / 60 Hz
EPS Rated Output Active Power	60 kW
EPS Rated Output Apparent Power	60 kVA
EPS Rated Output Current	91.2 / 86.6 A a. c.
Overload Capacity (Off Grid)	110% 30s / 120% 10s / 150% 0.2s
EFFICIENCY
MPPT Efficiency	99.9%
Euro-efficiency	97.5%
Max. Efficiency	98.5%
PROTECTION & FEATURE
Insulation Monitoring	Yes
Residual Current Monitoring	Yes
Parallel Function	Yes, up to 8 pcs
Protection Degree	IP66
Certifications	IEC 62109-1/2, IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4, EN50549-1&-10, NRS 097-2-1 etc.
Other Protection	Ground Fault Current Monitoring, Earth Fault Detection, Residual Current (RCD) Detection, etc.
GENERAL PARAMETER
Storage Temperature	-25℃ ~ +60℃
Operating Temperature	-25℃ ~ +60℃ ( Linely derating to 60% when exceed +45℃~ +60℃)
Humidity	0% ~ 100% (Non-condensing)
Operating Altitude	4,000 m
Noise	<65 dB
Warranty	5 years
Dimensions (WHD)	544880278 mm
Machine Weight / N.W.	88 kg
DISPLAY & COMMUNICATION
Display	LED+APP / LCD (-S Version)
Interface	RS485 / WiFi / CAN / DRM (Optional: Bluetooth / LAN / Meter)
The AC voltage and frequency range can differ according to the grid standards of each country. Please note that all specifications are subject to change without prior notice.

EH-60KL3 Detail

EH-60KL3 60KW| Three-phase |hybrid Inverter

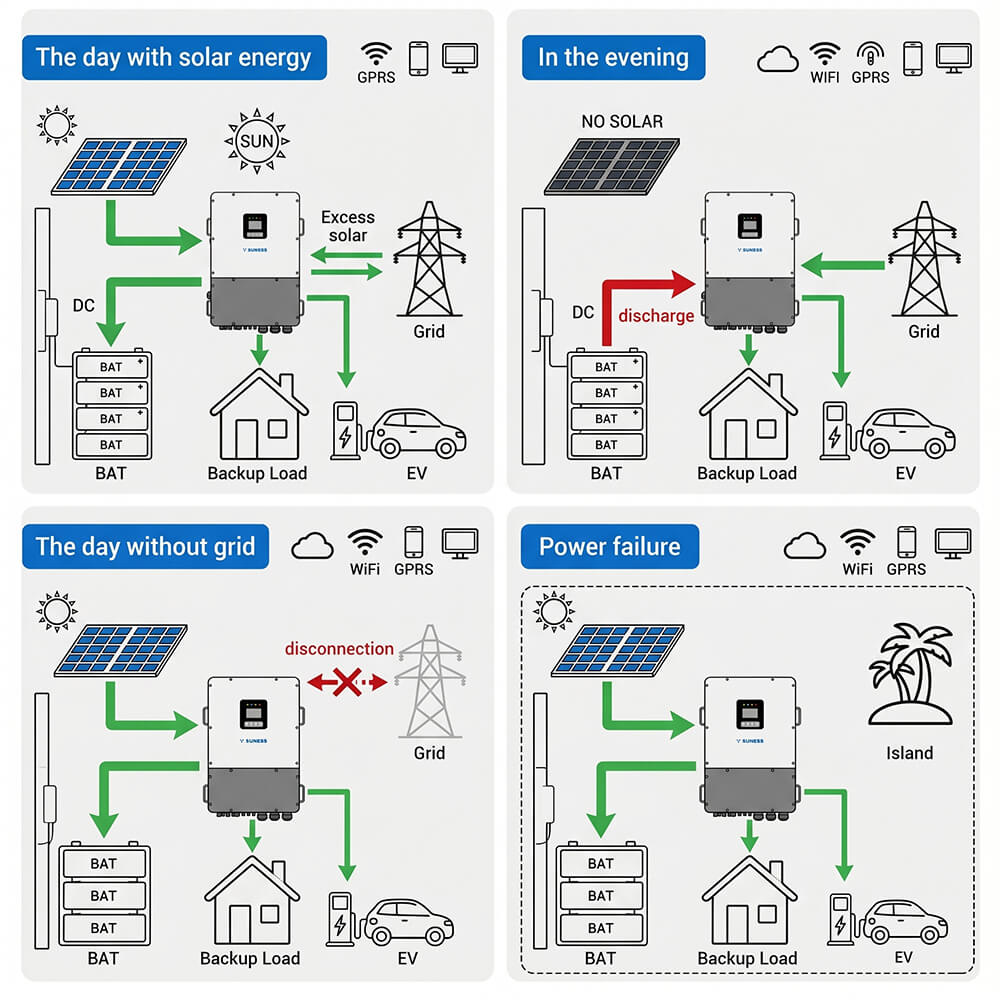

System connect

EH-16KL1 16KW| single phase |hybrid Inverter

Model	EH-60KL3
Rated outpot power(W)	60000
MAX. PV Charging	1000V
Rated battery input Voltage	150 ~ 800 V d.c.
Phase	3-Phase
Application	C&I
Dimension[W×DxH,mm]	544880278
Net Weight [Kg]	88
