EH-24KL3 Series

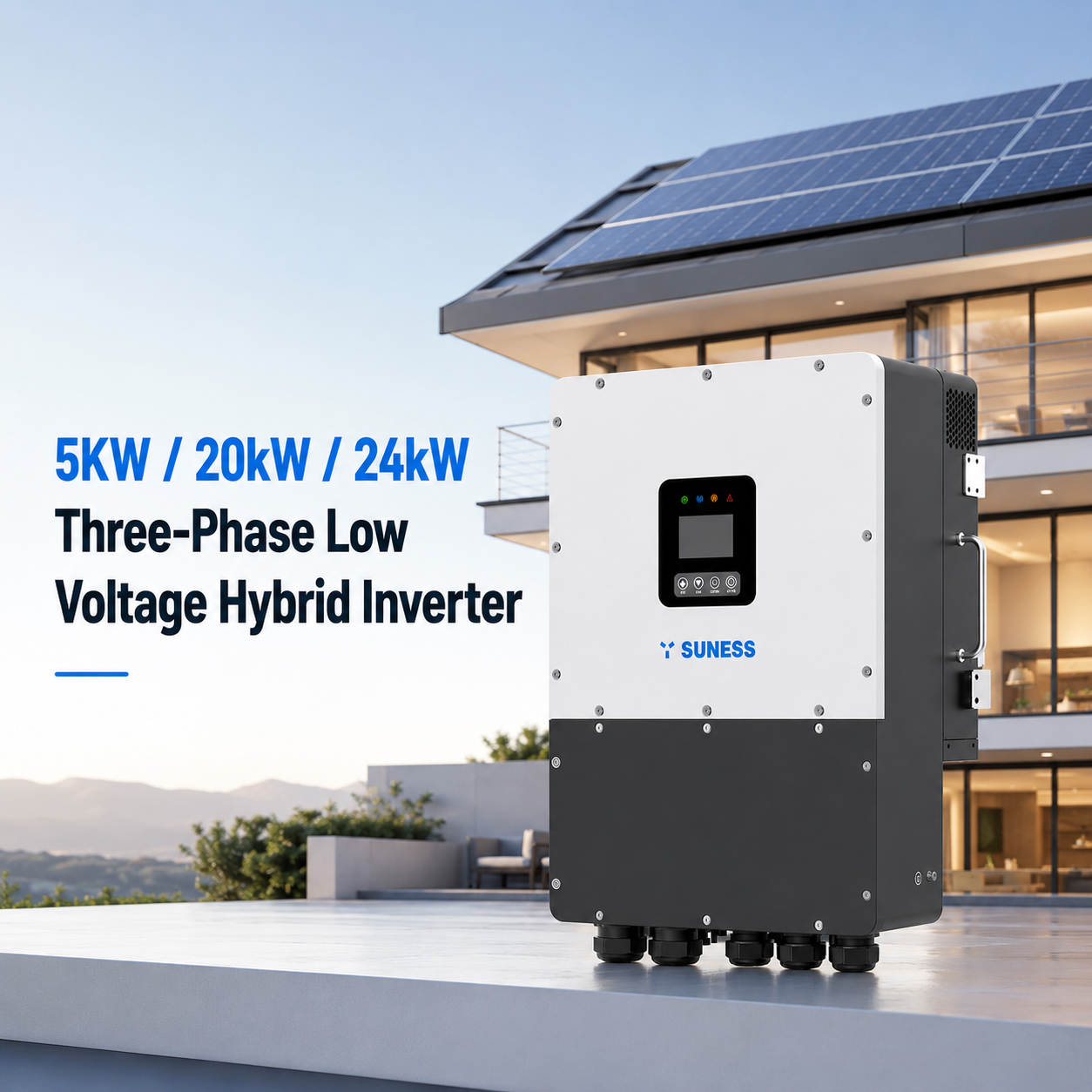

The EH-24KL3 series is an advanced three-phase hybrid inverter solution for residential and small commercial solar storage applications. Supporting 8kW to 24kW systems, it delivers ultra-high charging and discharging performance up to 415A with three independent battery connections for enhanced flexibility. Integrated SiC semiconductor technology and a rugged all-aluminum IP66 design provide outstanding conversion efficiency, operational stability, and all-weather durability.

Specification

TECHNICAL SPECIFICATION
Model	SSE-HL15K-P3EU-S	SSE-HL20K-P3EU-S	SSE-HL24K-P3EU-S
INVERTER INPUT / OUTPUT (GRID)
Rated Power	15 kW / 15 kW	20 kW / 20 kW	24 kW / 24 kW
Rated Voltage	380 / 400 V a.c., 3W+N+PE
Rated Frequency	50 Hz / 60 Hz
Power Factor Range	0.8 leading ~ 0.8 lagging
Switch Time	＜20
Current (Maximum / Continuous)	43 / 22 A a.c.	58 / 29 A a.c.	60 / 35 A a.c.
Max. Output Overcurrent Protection	400 V a.c. / 100 A a.c.
BATTERY
Battery Type	Lithium / Lead-acid
Battery Voltage Range	40~60 V d.c.
Rated Battery Voltage	51.2 V d.c.	48 V d.c.
Max. Charge Current	315 A d.c.	390 A d.c.	415 A d.c.
Max. Discharge Current	315 A d.c.	390 A d.c.	415 A d.c.
PV INPUT
No. of MPPT Tracker / Strings	2 / 2+2+2
Max. PV Array Power	30 kW	40 kW	48 kW
Max. DC Voltage	1000 V d.c.
MPPT Voltage Range	150~950 V d.c.
Start-up Voltage	180 V d.c.
Max. Input Current	4*20 A d.c.
Isc PV (Absolute Maximum)	4*30 A d.c.
AC OUTPUT (EPS)
EPS Rated Output Voltage	380 / 400 V a.c., 3W+N+PE
EPS Rated Output Frequency	50 Hz / 60 Hz
EPS Rated Output Active Power	15 kW	20 kW	24 kW
EPS Rated Output Apparent Power	15 kVA	20 kVA	24 kVA
EPS Rated Output Current	22 A a.c.	29 A a.c.	35 A a.c.
Overload Capacity (Off Grid)	110% 600s / 120% 300s / 150% 60s / 200% 10s
EFFICIENCY
MPPT Efficiency	99.9%
Euro-efficiency	97.20%
Max. Efficiency	98.00%
PROTECTION & FEATURE
Insulation Monitoring	Yes
Residual Current Monitoring	Yes
Parallel Function	Yes

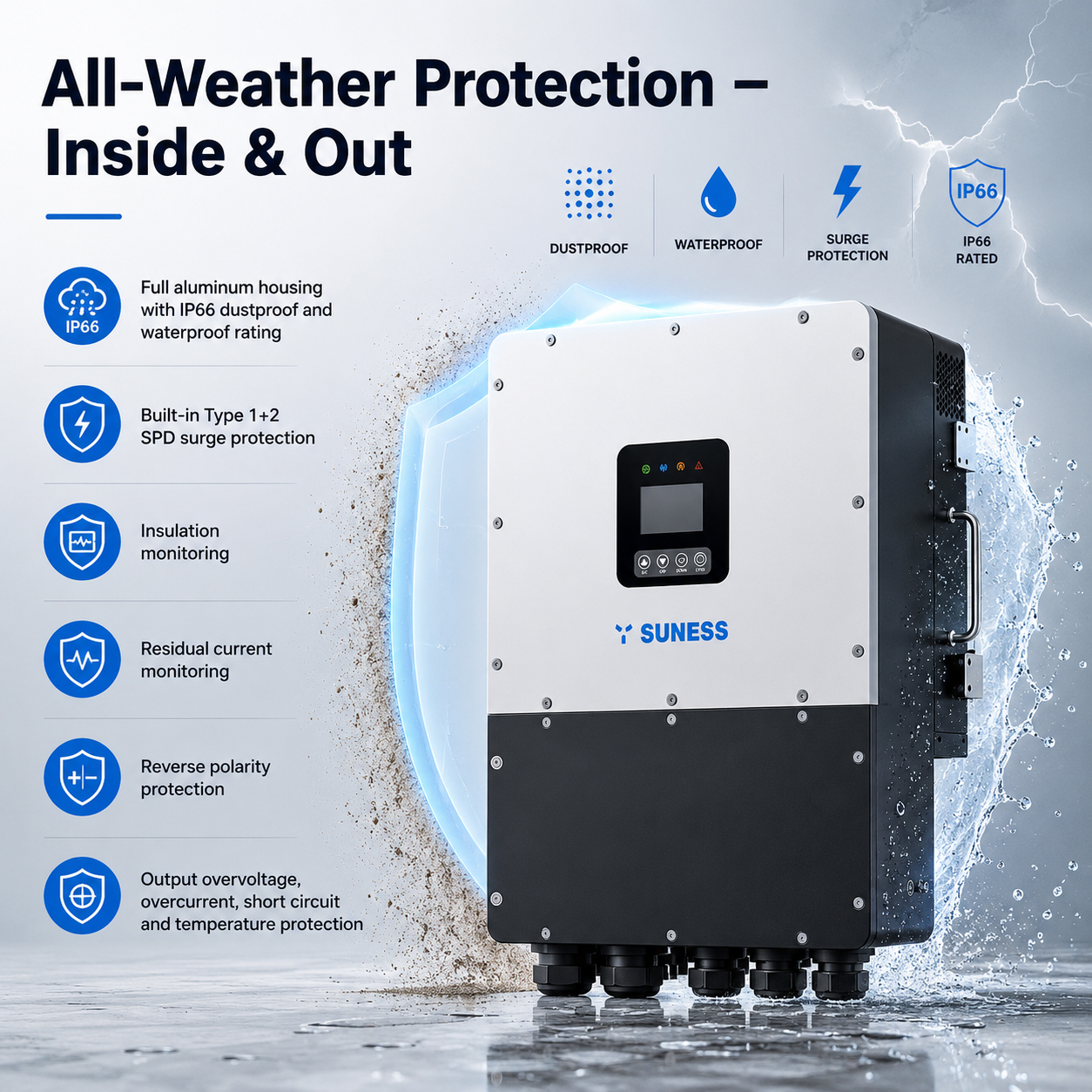

Protection Degree	IP66
Certifications	IEC 62109-1/2, IEC 62477-1, IEC 61000-6-1, IEC 61000-6-3, EN 50549-1&-10, NRS 097-2-1, IEC 61727, IEC 61683, IEC 62116
Other Protection	Output over voltage, Output over current, Short circuit, Surge, Temperature, Anti-lslanding
GENERAL PARAMETER
Storage Temperature	-25℃ ~ +60℃
Operating Temperature	-25℃ ~ +60℃ (Linely derating to 60% when exceed +45℃~+60℃
Humidity	0~95% (Non-condensing)
Altitude	4000 m (> 2000 m Derating)
Noise	<75 dB
Machine Dimension(WHD)	448660265 mm
Machine Weight / N.W.	48 kg
DISPLAY & COMMUNICATION
Display	LCD + APP

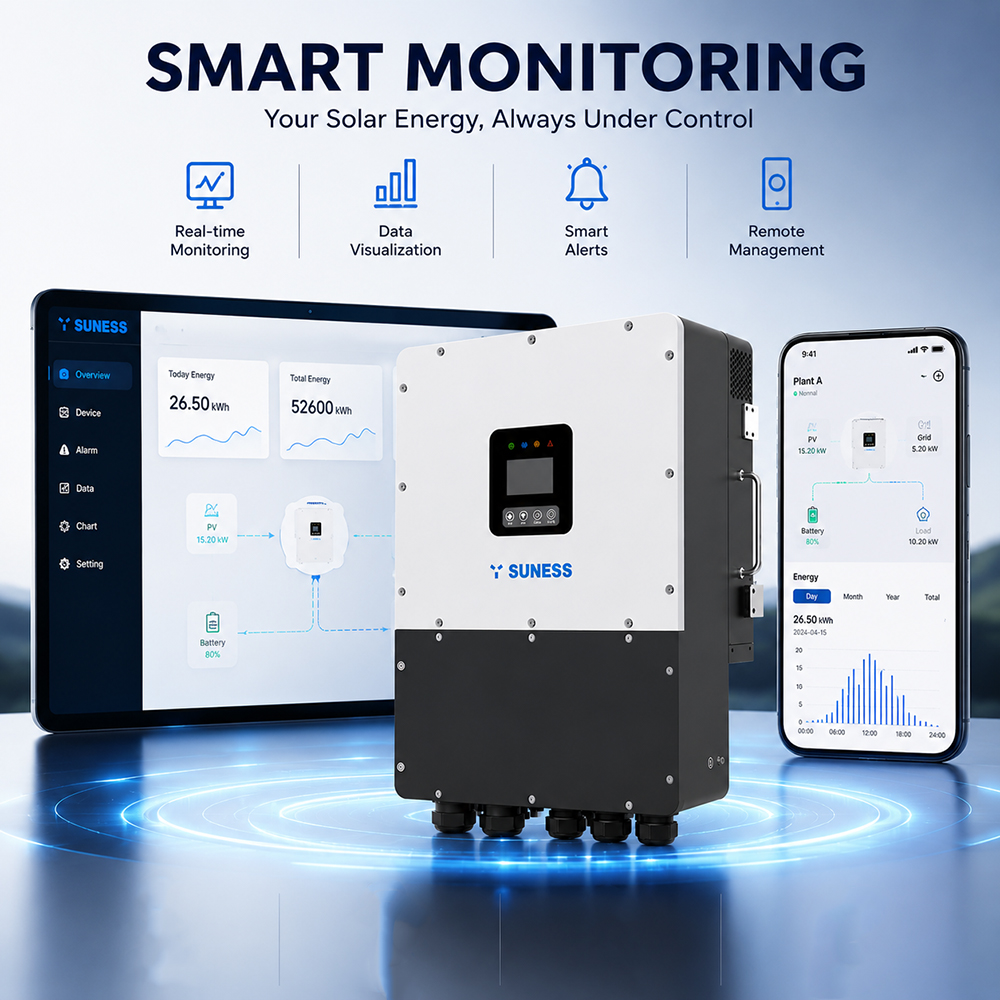

Interface	RS485 / WiFi / CAN / DRM (Optional: Bluetooth / LAN / Meter)
The AC voltage and frequency range can differ according to the grid standards of each country. Please note that all specifications are subject to change without prior notice.

EH-24KL3 Detail

EH-24KL3 24KW| Three-phase | hybrid Inverter

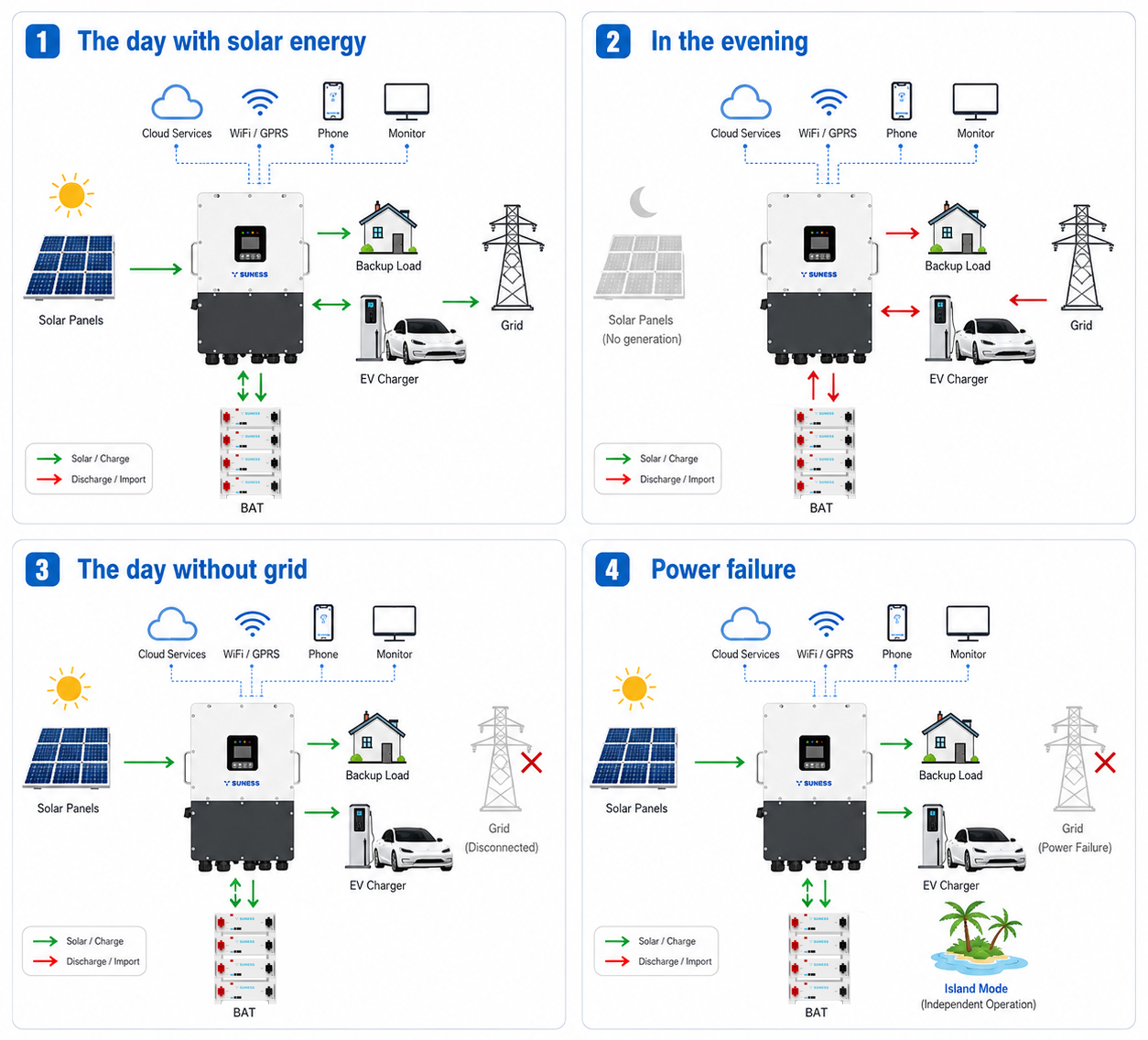

System connect

EH-16KL1 16KW| single phase |hybrid Inverter

Model	EH-24KL3
Rated outpot power(W)	24000
MAX. PV Charging	1000V
Rated battery input Voltage	45-58V
Phase	3-Phase
Application	Home
Dimension[W×DxH,mm]	448660265
Net Weight [Kg]	48
