| Model | EH-16KL1 |
| Rated outpot power(W) | 16000 |
| MAX. PV Charging | 550V |
| Rated battery input Voltage | 45-58V |
| Phase | 1-Phase |

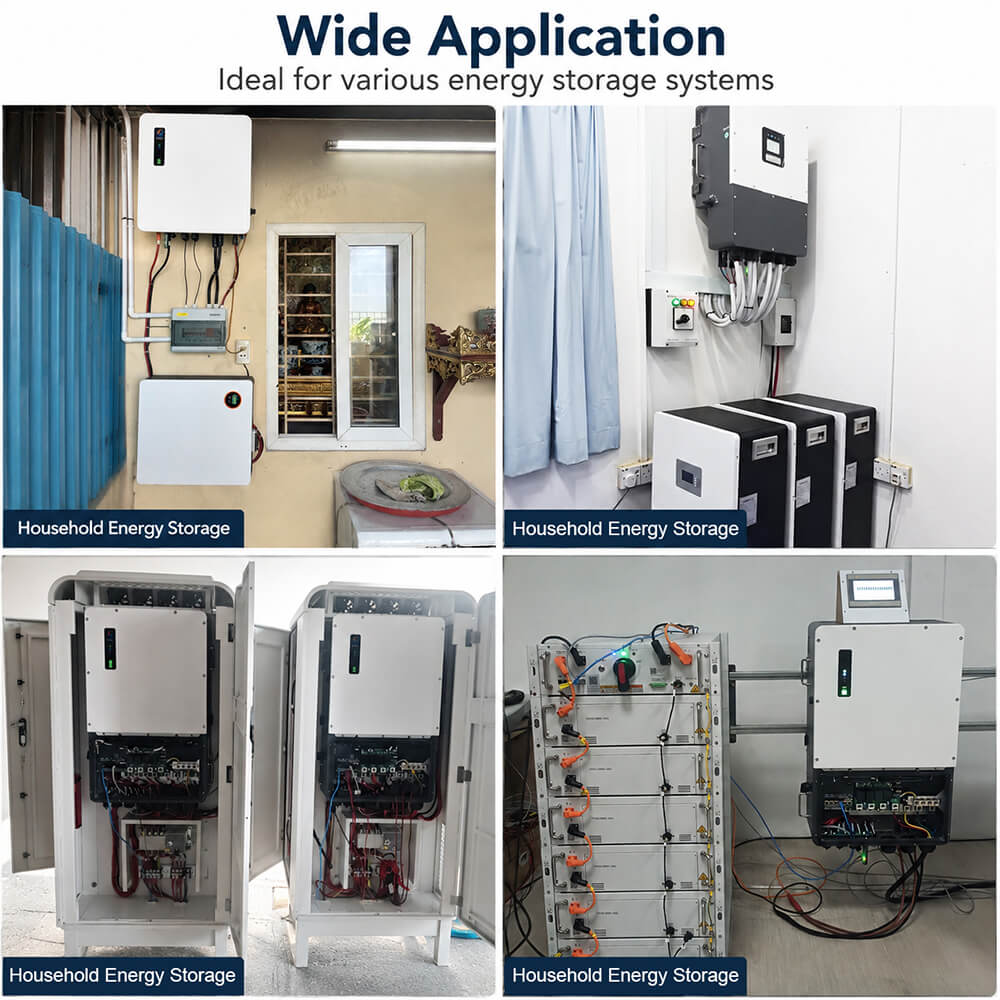

| Application | Home |
| Dimension[W×DxH,mm] | 600*466*252 |
| Net Weight [Kg] | 40 |

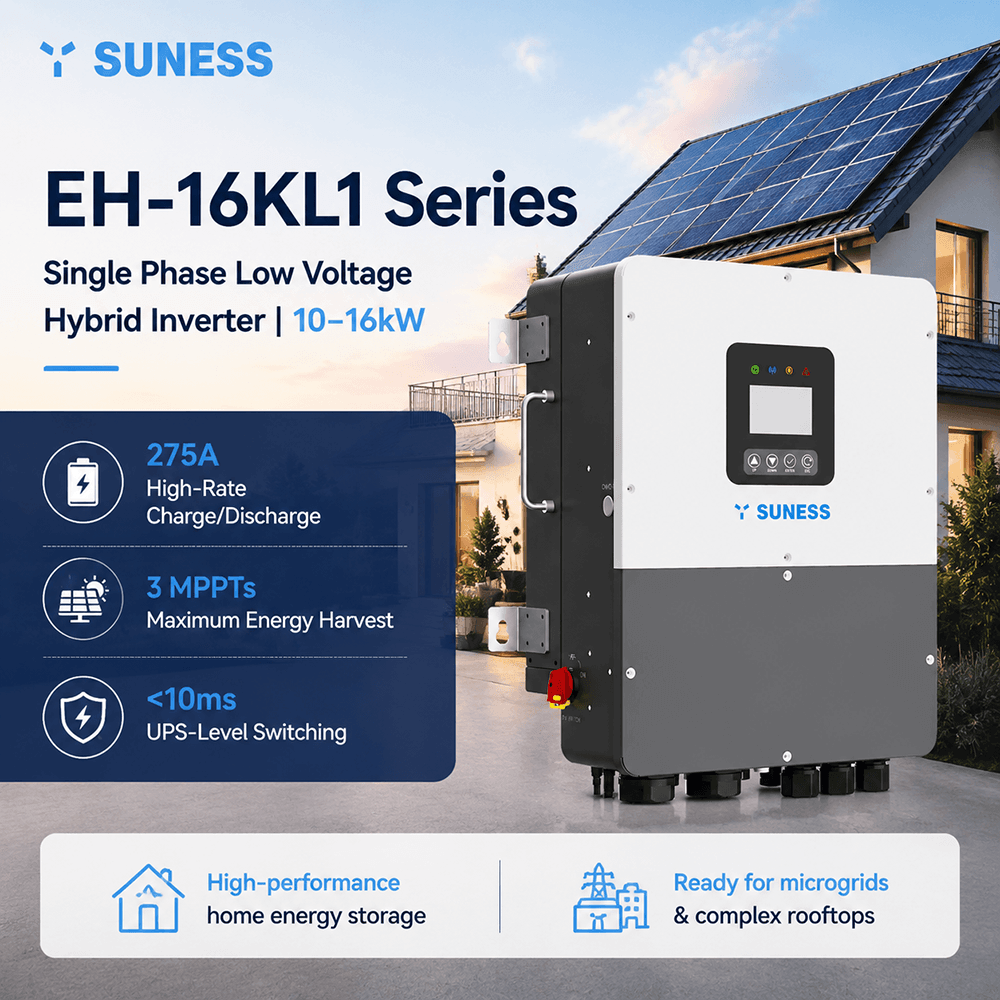

EH-16KL1 Series
| ECHNICAL SPECIFICATION | |
|
Model |
EH-16KL1 |
|
INVERTER INPUT/OUTPUT (GRID) |
|
|
Rated Power |
16 kW |
|
Rated Voltage |
220 / 230 / 240 V a.c., L+N+PE |
|
Rated Frequency |
50 Hz / 60 Hz |
|
Power Factor Range |
0.8 leading ~ 0.8 lagging |
|
Switch Time |
< 10ms |
|
Current (Maximum Continuous) |
69.6 A a.c. |
|
Max. Output Overcurrent Protection |
100 A a.c. |
|
BATTERY |
|
|
Battery Type |
Lithium / Lead-acid |
|
Battery Voltage Range |
40~60 V d.c. |
|
Rated Battery Voltage |
51.2 V d.c. |
|
Max. Charge Current |
275 A d.c. |
|
Max. Discharge Current |
275 A d.c. |
|
Reverse Connect Protection |
Yes |
|
PV INPUT |
|
|
No. of MPPT Tracker / Strings |
3 / 2+2+2 |
|
Max. PV Array Power |
22.5 kW |
|
Max. DC Voltage |
550 V d.c. |
|
MPPT Voltage Range |
120~480 V d.c. |
|
Start-up Voltage |
120 V d.c. |
|
Max. Input Current |
3*26 A d.c. |
|
Isc PV (Absolute Maximum) |
3*39 A d.c. |
|

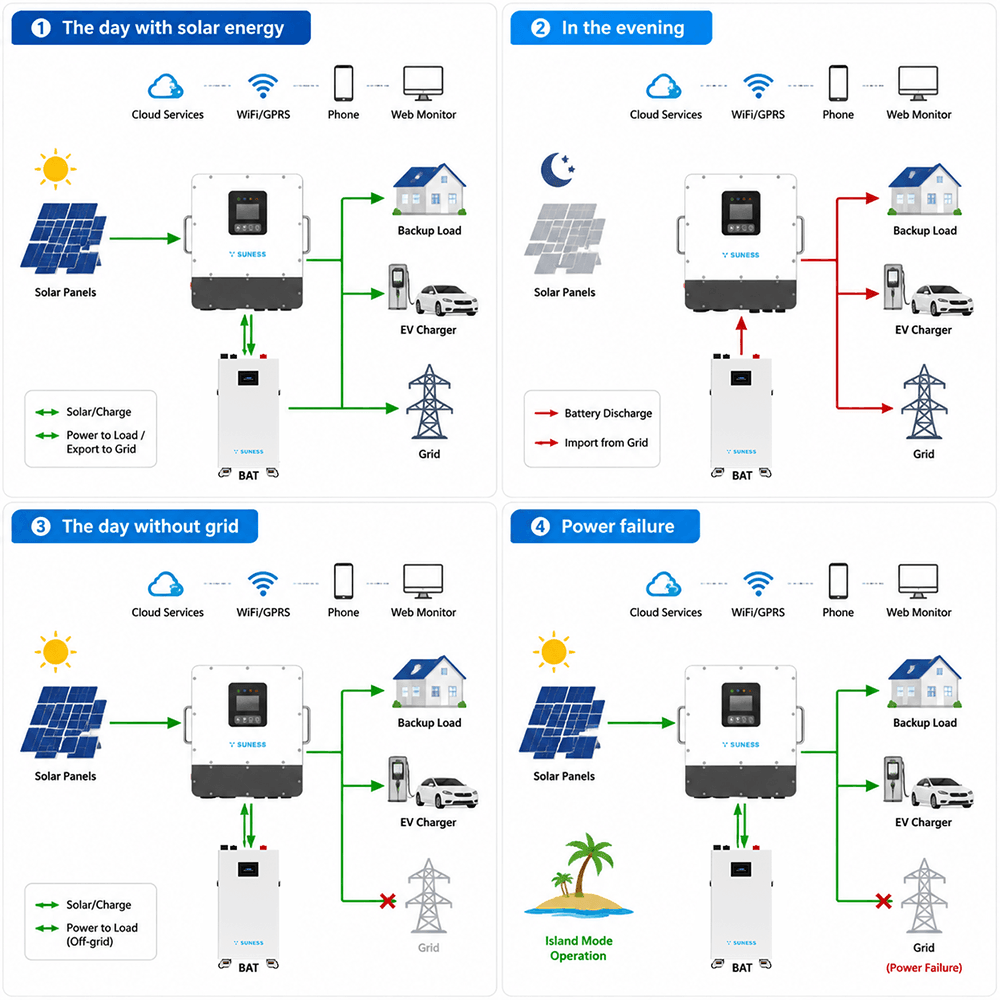

AC OUTPUT (EPS) |
|
|
EPS Rated Output Voltage |
220 / 230 / 240 V a.c., L+N+PE |
|
EPS Rated Output Frequency |
50 Hz / 60 Hz |
|
EPS Rated Output Active Power |
16 kW |
|
EPS Rated Output Apparent Power |
16 kVA |
|
EPS Rated Output Current |
69.6 A a.c. |
|
Overload Capacity (Off Grid) |
200% (<10s) / 150% (60s) |
|
EFFICIENCY |
|
|
MPPT Efficiency |
99.90% |
|
Euro-efficiency |
96.50% |
|
Max. Efficiency |
97.30% |
|
PROTECTION & FEATURE |
|
|
Insulation Monitoring |
Yes |
|
Residual Current Monitoring |
Yes |
|

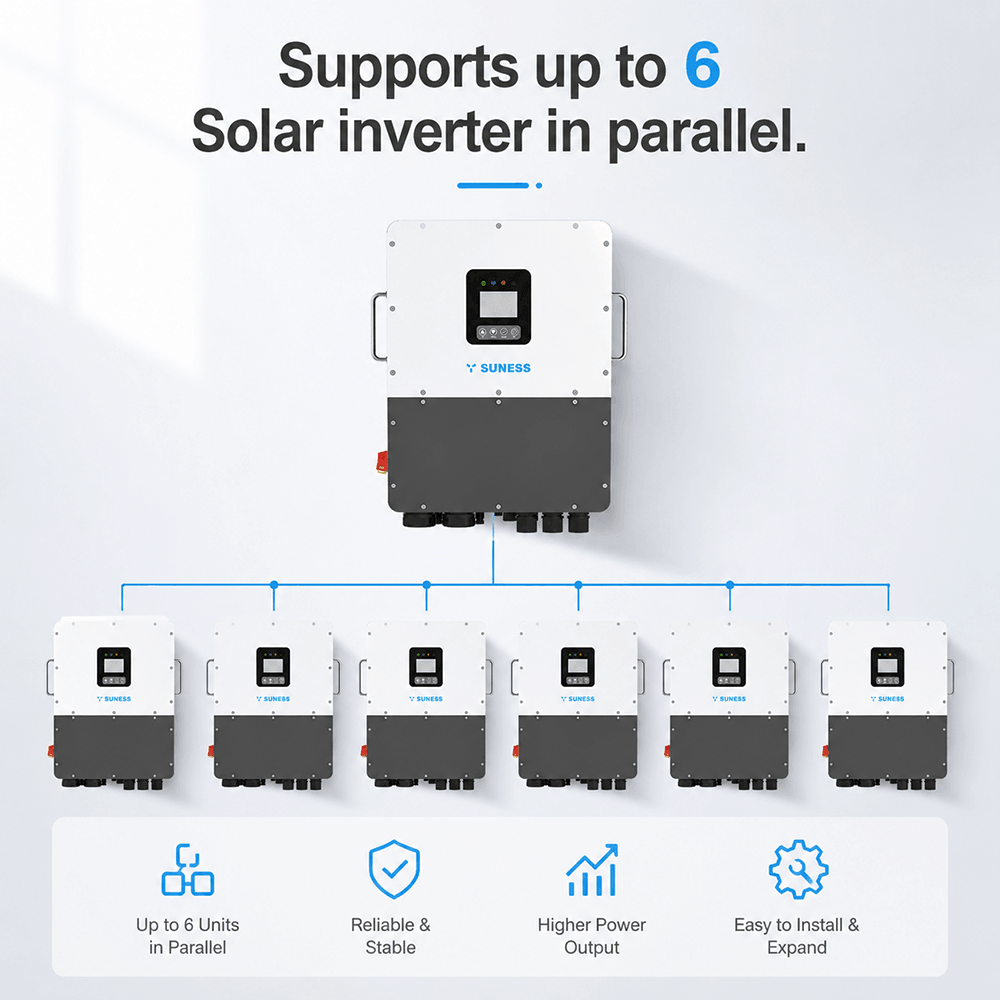

Parallel Function |
Yes |
|
Protection Degree |
IP65 |
|
Certifications |
IEC 62109-1/2, IEC 62477-1, IEC 61000-6-1, IEC 61000-6-3, EN 50549-1&-10, NRS 097-2-1, ABNT NBR 16149, IEC 61727, IEC 61683, IEC 62116, etc. |
|
Other Protection |
Output over voltage, Output over current, Short circuit, Surge, Temperature |
|
GENERAL PARAMETER |
|
|
Storage Temperature |
-25°C ~ +60°C |
|
Operating Temperature |
-25°C ~ +60°C (Linely derating to 60% when exceed +45°C ~ +60°C |
|
Humidity |
0~100% % (Non-condensing) |
|
Altitude |
4000 m (>2000 m Derating) |
|
Noise |
<50 dB |
|
Warranty |
5 years |
|

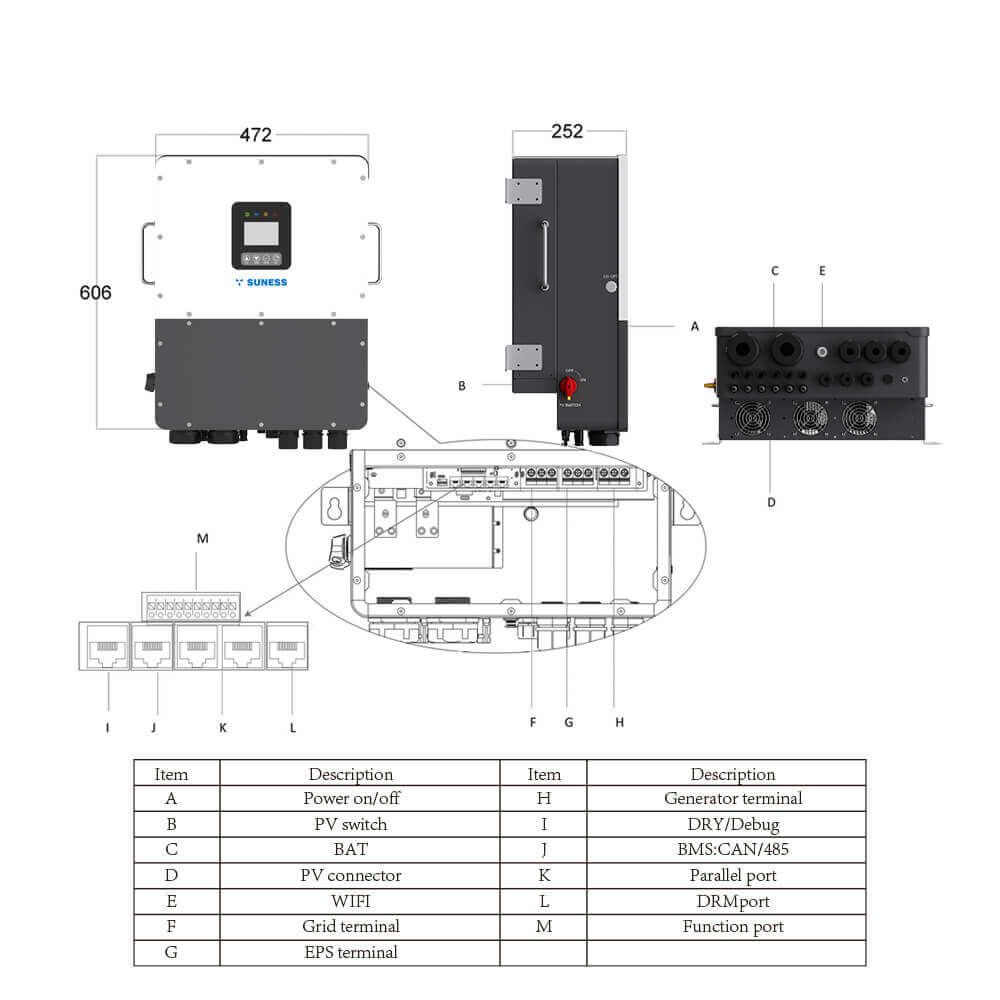

Machine Dimension (W*H*D) |
466*600*252 mm |
|
Machine Weight / N.W. |
40 kg |
|
DISPLAY & COMMUNICATION |
|
|
Display |
LCD+APP |
|
Interface |
RS485 / WiFi / CAN / Bluetooth (Optional: LAN / Meter) |
