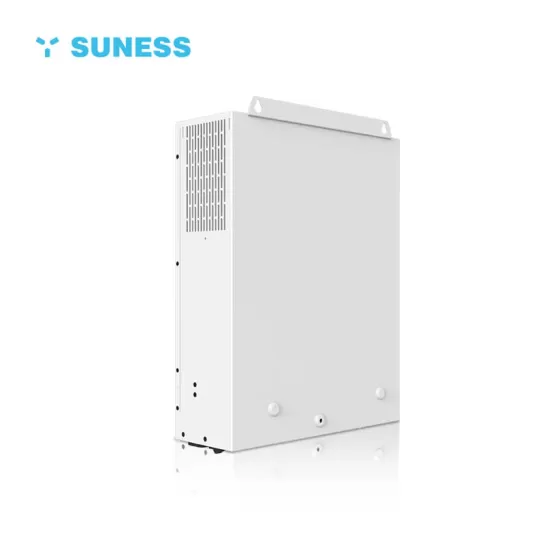

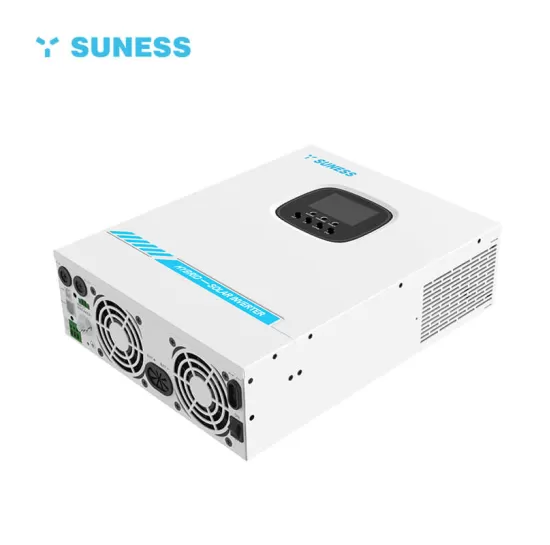

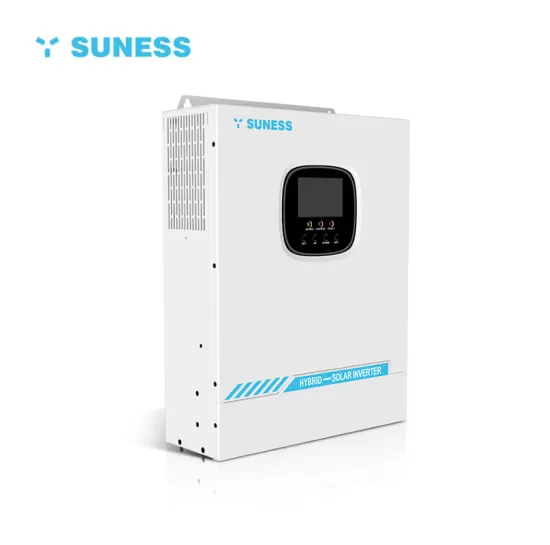

HIP3524 3.5KW|Single Phase|MPPT

ModelHIP3524
Rated outpot power(W)3500
MAX. PV Charging500V
Rated battery input Voltage24V
Input voltage range220/230VAC
ApplicationHome
Dimension[W×DxH,mm]378×280×103
Net Weight [Kg]7.4


Introduction

HIP Series

Pure sine wave output.

Advanced SPWM technology

Mains bypass voltage or inverter output can be selected

Provide 4 charging modes

Advanced MPPT technology, the efficiency reaches 99.9%

Design LCD screen to observe dynamic data

ON/OFF rocker switch for AC output control

Power saving mode can reduce no-load loss

Intelligent heat dissipation, prolonging the life of the system

Support lead-acid battery and lithium battery

Perfect protection, with multiple protection functions

Specification

ModelsHIP3524
AC Mode
Rated input voltage220/230Vac
Frequency50Hz/ 60Hz (Auto detection)
Overload/short circuit protectionCircuit breaker
Efficiency>95%
Conversion time (bypass and inverter)10ms (typical)
AC reverse protectionAvailable
Maximum bypass overload current30A
Inverter Mode
Output voltage waveformPure sine wave
Rated output power (VA)3500
Rated output power (W)3500
Rated output voltage (Vac)230Vac
Output voltage error±5%
Maximum Efficiency>92%
Peak power6000VA
Loaded motor capability2HP
Rated battery input voltage24V (Minimum starting voltage 22V)
Power saving modeLoad ≤50W
AC Charging
Battery typeLead acid or lithium battery
Maximum charge current(can be set)0-80A
Charge current error± 5Adc
Charge voltage range20 –33Vdc
Short circuit protectionCircuit breaker and blown fuse
Circuit breaker specifications30A
Overcharge protectionAlarm and turn off charging after 1 minute
PV charging
Maximum PV open circuit voltage500Vdc
PV operating voltage range120-500Vdc
MPPT voltage range120-450Vdc
Battery voltage range20 –33Vdc
Maximum input power4000W
PV charging current range (can be set)0-80A
Charging short circuit protectionBlown fuse
Wiring protectionReverse polarity protection
Hybrid charging Max charger current specifications (AC charger+PV charger)
Max charger current(can be set)0-80A
Certified specifications
CertificationCE(IEC 62109-1)/FCC/SAA
Humidity range5% to 95% (Conformal coating protection)
Noise≤60dB
Heat dissipationForced air cooling, variable speed of fan

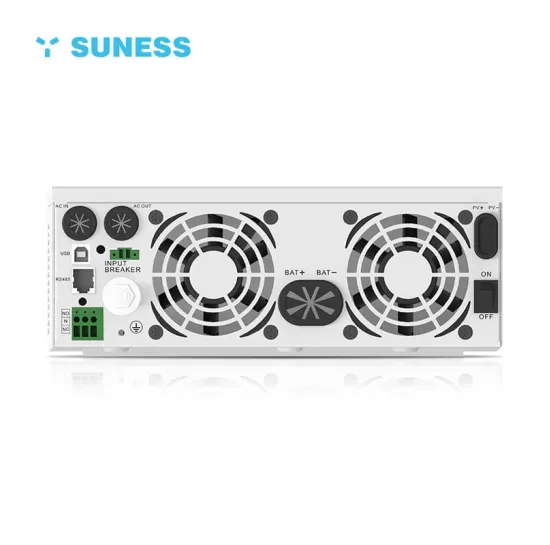

Communication interfaceUSB/CAN/RS485(WiFi/GPRS)/Dry node control
Size (L*W*D)378mm*280mm*103mm
Weight (kg)7.4

System connect

Solar Inverter working With Battery

inverter manufacturers

Solar Inverter working Without Battery

3kw on grid solar system
