| Model | MS-450 |
Cell Amoun | 60*2 pcs |
Junction Bo | IP68 |
| Application Level | Class A |
| Frame | Aluminum Alloy |
| Cable | 4mm²/300mm MC4 |
| Dimension[W×DxH,mm] | 1909×1134×35 |
| Net Weight [Kg] | 23.9kg |
Introduction

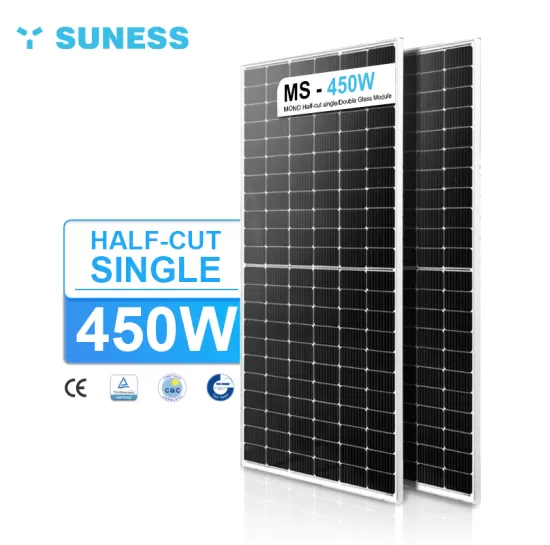

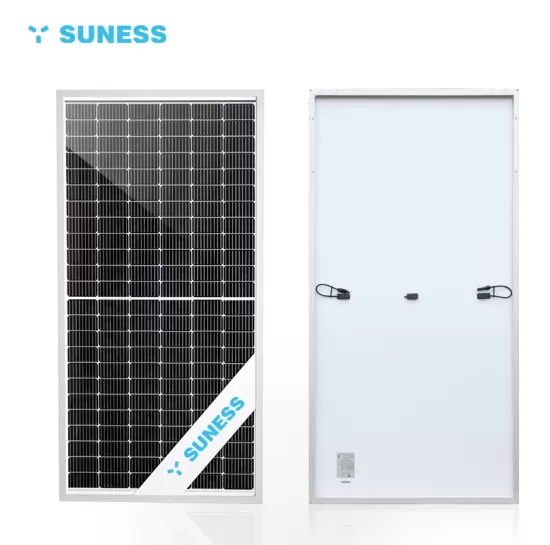

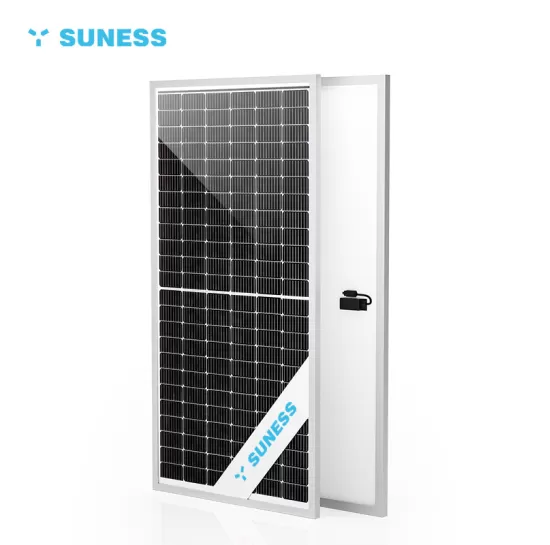

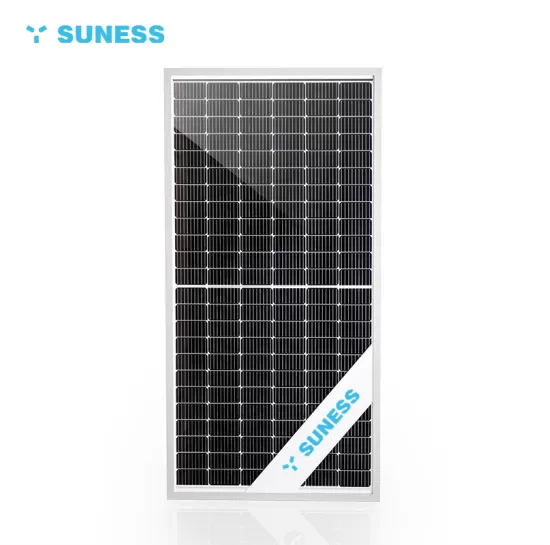

Mono Half-cut single/Double Glass Module
Saving logistics cost Saving cable cost
Saving bracket cost Saving labor cost
10-year warranty for material and technology
25-year linear power output warranty
| Module Type | MS-450W |
| Maximum Power (Pmax/W) | 450 |
| Open Circuit Voltage(VocN) | 41.25 |
| Short Circuit Current(lsc/A) | 13.89 |
| Maximun Power Voltage(VmpN) | 34.67 |
| Maximum Power Current(lmp/A) | 12.98 |
| Module Efficiency(%) | 20.80 |
| Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C. | |
| ELECTRICAL PARAMETERS | AT NOCT |
| Maximum Power (Pmax/W) | 340 |
| Open Circuit Voltage(VocN) | 38.65 |
| Short Circuit Current(lsc/A) | 11.08 |
| Maximun Power Voltage(Vmp/V) | 38.65 |
| Maximum Power Current(lmp/A) | 11.08 |
| Output Tolerance | 0~+5W |
