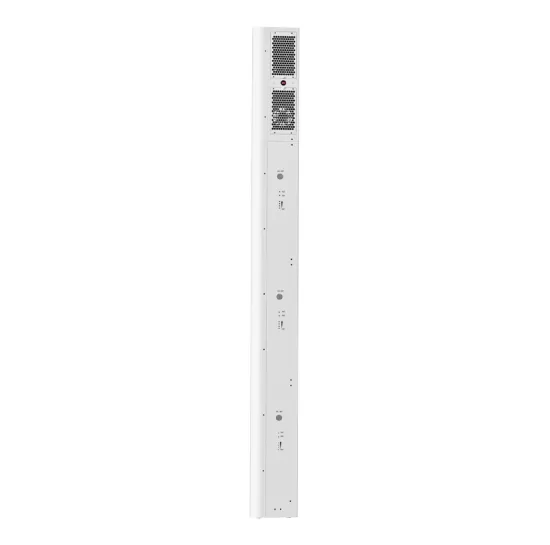

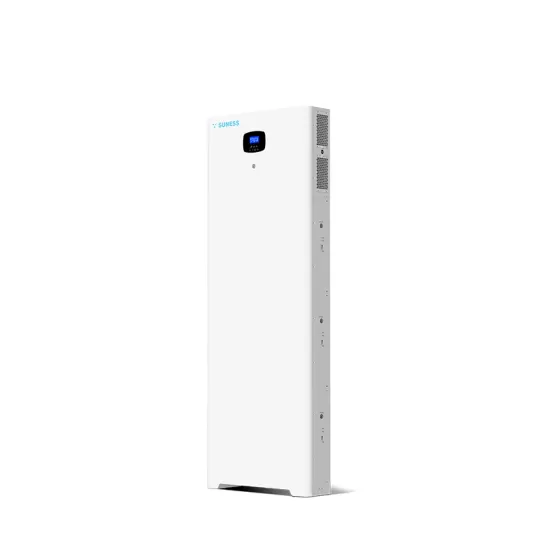

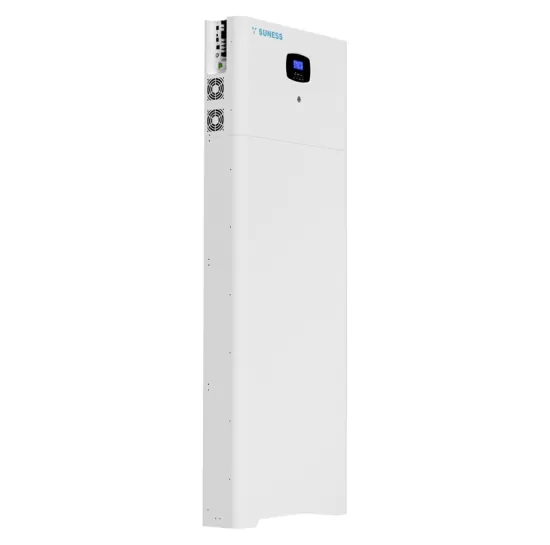

| Model | SUN 500-15.36L |
| Total Energy [kWh] | 15.36 |
| Output Power[W] | 5000 |
| Output Voltage [V] | 230 |
| Battery Type | LiFePO4 |
| Parallel Capacity | 1-3 units |
| Dimension[W×DxH,mm] | 640*170*1765 |
| Net Weight [Kg] | 174 |
Introduction
LCD screen with real-time data
High quality lithium iron phosphate cells
Multiple charge and discharge modes available
Up to 3 batteries in parallel expand to 15.36kWh
Built-in BMS and MPPT solar charge controller
No matching and commissioning required,ready to install
| Model | SUN 5000-5.12L | SUN 5000-10.24L | SUN 5000-15.36L |
| INVERTER MODULE | |||
| Output | |||
| Nominal Output Power[W] | 5000 | ||
| Max. Peak Power[VA] | 10000 | ||
| Load Capacity of Motor[HP] | 4 | ||
| Wave Form | Pure Sine Wave | ||
| Rated Output Voltage(can be set)[Vac] | 230 (200~240Vac) | ||
| Output Mode | Off-grid/Hybrid | ||
| PV Input | |||
| Solar Charge Type | MPPT | ||
| Num. of MPPT Trackers | 1 | ||
| Max. PV Array Power[W] | 5500 | ||
| Max. PV Open Circuit Voltage[Vac] | 500 | ||
| Grid / Generator Input | |||
| Input Voltage Range[Vac] | 90~280 | ||
| Bypass Overload Current[A] | 40 | ||
| Battery Charging | |||
| Solar Charging Current Range (can be set)[A] | 0~100 | ||
| Grid/Generator Charging Current Range (can be set)[A] | 0~60 | ||
| General | |||
| Dimension [W x D x H, mm] | 640*170*420 | ||
| Net Weight [Kg] | 16 | ||
| BATTERY MODULE | |||
| Total Energy [kWh] | 5.12 | 10.24 | 15.36 |
| Voltage Range [V] | 48~57.6 | 48~57.6 | 48~57.6 |
| Capacity [Ah] | 100 | 200 | 300 |
| Battery Type | LiFePO4 | ||
| Max. Parallel Capacity (can be set) | 1~3units （up to 15.36kWh） | ||
| Cycle Life | ＞6,000 Cycle@ 80% DOD / 25℃ / 0.5C, 60%EOL | ||
| REGULAR DATA | |||
| Communication with BMS | RS485 | ||
| Working Temperature Range [℃] | -10 ~ 50 | ||
| Enclosure Protection Rating | IP21 | ||
| System Certification | IEC62619,UN38.3,CE | ||
| Warranty | Inverter(3 years)， Battery(5 years) | ||
| Dimension [W x D x H, mm] | 617*170*905 | 640*170*1335 | 640*170*1765 |
| Net Weight [Kg] | 68 | 116 | 174 |
The solar all-in-one Solar System is a device that integrates the functions of solar energy collection, conversion and storage. It is composed of solar inverters, battery packs and other components, and performs automated energy management and power output through an integrated control system.
The advantages of solar all-in-one machines are mainly reflected in the following aspects:
Environmental protection and energy saving: The solar all-in-one machine uses solar energy as energy, does not need to burn fossil fuels, does not produce any pollutants and harmful gases such as carbon dioxide, and is environmentally friendly. At the same time, it makes full use of solar energy resources to achieve self-sufficient energy supply, which can effectively reduce the dependence on traditional electricity.
Efficient and stable: The solar all-in-one machine uses high-efficiency solar photovoltaic panels and inverters, which can convert solar energy into stable electrical energy output. Through the advanced energy management system, the maximum utilization and stable supply of energy can be ensured, and the energy efficiency of the entire system can be improved.
Easy installation and maintenance: The solar integrated machine integrates multiple components, which simplifies the process of system construction and reduces installation time and cost. At the same time, the integrated design makes maintenance and repair more convenient, and reduces the hidden danger of failure caused by scattered components.
High reliability: The solar all-in-one machine performs intelligent energy management through an integrated control system, and can adjust energy collection and storage in real time according to the intensity of sunlight and battery status to ensure system stability and reliability. At the same time, the components and material selection of the all-in-one machine have undergone rigorous testing, which has high durability and resistance to stress.
To sum up, the solar all-in-one machine integrates the functions of solar energy collection, conversion and storage, and has the advantages of environmental protection and energy saving, high efficiency and stability, convenient installation and maintenance, and high reliability. It is a feasible solar energy utilization scheme.
Installation Location Requirements
Long warranty inverter battery
Multiple charge and discharge modes available
Built-in BMS and MPPT solar charge controller
No matching and commissioning required,ready to install
10 years + R&D team
The most competitive price
Free after-sales maintenance
We provide OEM/ODM service
