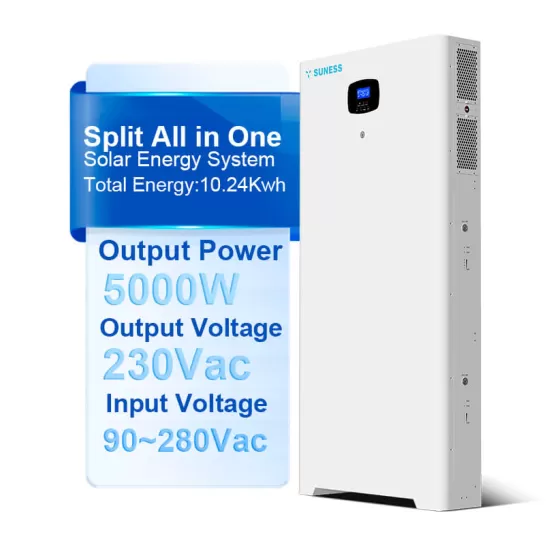

| Model | SUN 500-10.24L |
| Total Energy [kWh] | 10.24 |
| Output Power[W] | 5000 |
| Output Voltage [V] | 230 |
| Battery Type | LiFePO4 |
| Parallel Capacity | 1-3 units |
| Dimension[W×DxH,mm] | 640*170*1335 |
| Net Weight [Kg] | 116 |

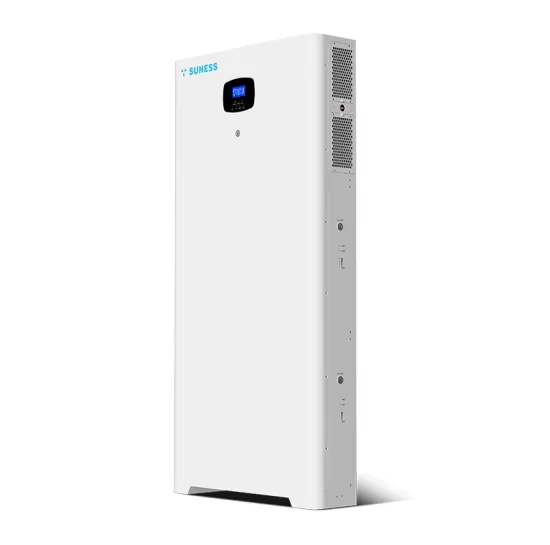

Introduction
LCD screen with real-time data
High quality lithium iron phosphate cells
Multiple charge and discharge modes available
Up to 3 batteries in parallel expand to 15.36kWh
Built-in BMS and MPPT solar charge controller
No matching and commissioning required,ready to install
| Model | SUN 5000-5.12L | SUN 5000-10.24L | SUN 5000-15.36L |
| INVERTER MODULE | |||
| Output | |||
| Nominal Output Power[W] | 5000 | ||
| Max. Peak Power[VA] | 10000 | ||
| Load Capacity of Motor[HP] | 4 | ||
| Wave Form | Pure Sine Wave | ||
| Rated Output Voltage(can be set)[Vac] | 230 (200~240Vac) | ||
| Output Mode | Off-grid/Hybrid | ||
| PV Input | |||
| Solar Charge Type | MPPT | ||
| Num. of MPPT Trackers | 1 | ||
| Max. PV Array Power[W] | 5500 | ||
| Max. PV Open Circuit Voltage[Vac] | 500 | ||
| Grid / Generator Input | |||
| Input Voltage Range[Vac] | 90~280 | ||
| Bypass Overload Current[A] | 40 | ||
| Battery Charging | |||
| Solar Charging Current Range (can be set)[A] | 0~100 | ||
| Grid/Generator Charging Current Range (can be set)[A] | 0~60 | ||
| General | |||
| Dimension [W x D x H, mm] | 640*170*420 | ||
| Net Weight [Kg] | 16 | ||
| BATTERY MODULE | |||
| Total Energy [kWh] | 5.12 | 10.24 | 15.36 |
| Voltage Range [V] | 48~57.6 | 48~57.6 | 48~57.6 |
| Capacity [Ah] | 100 | 200 | 300 |
| Battery Type | LiFePO4 | ||
| Max. Parallel Capacity (can be set) | 1~3units （up to 15.36kWh） | ||
| Cycle Life | ＞6,000 Cycle@ 80% DOD / 25℃ / 0.5C, 60%EOL | ||
| REGULAR DATA | |||
| Communication with BMS | RS485 | ||
| Working Temperature Range [℃] | -10 ~ 50 | ||
| Enclosure Protection Rating | IP21 | ||
| System Certification | IEC62619,UN38.3,CE | ||
| Warranty | Inverter(3 years)， Battery(5 years) | ||
| Dimension [W x D x H, mm] | 617*170*905 | 640*170*1335 | 640*170*1765 |
| Net Weight [Kg] | 68 | 116 | 174 |
Installation Location Requirements
Long warranty inverter battery
Multiple charge and discharge modes available
Built-in BMS and MPPT solar charge controller
No matching and commissioning required,ready to install
10 years + R&D team
The most competitive price
Free after-sales maintenance
We provide OEM/ODM service
